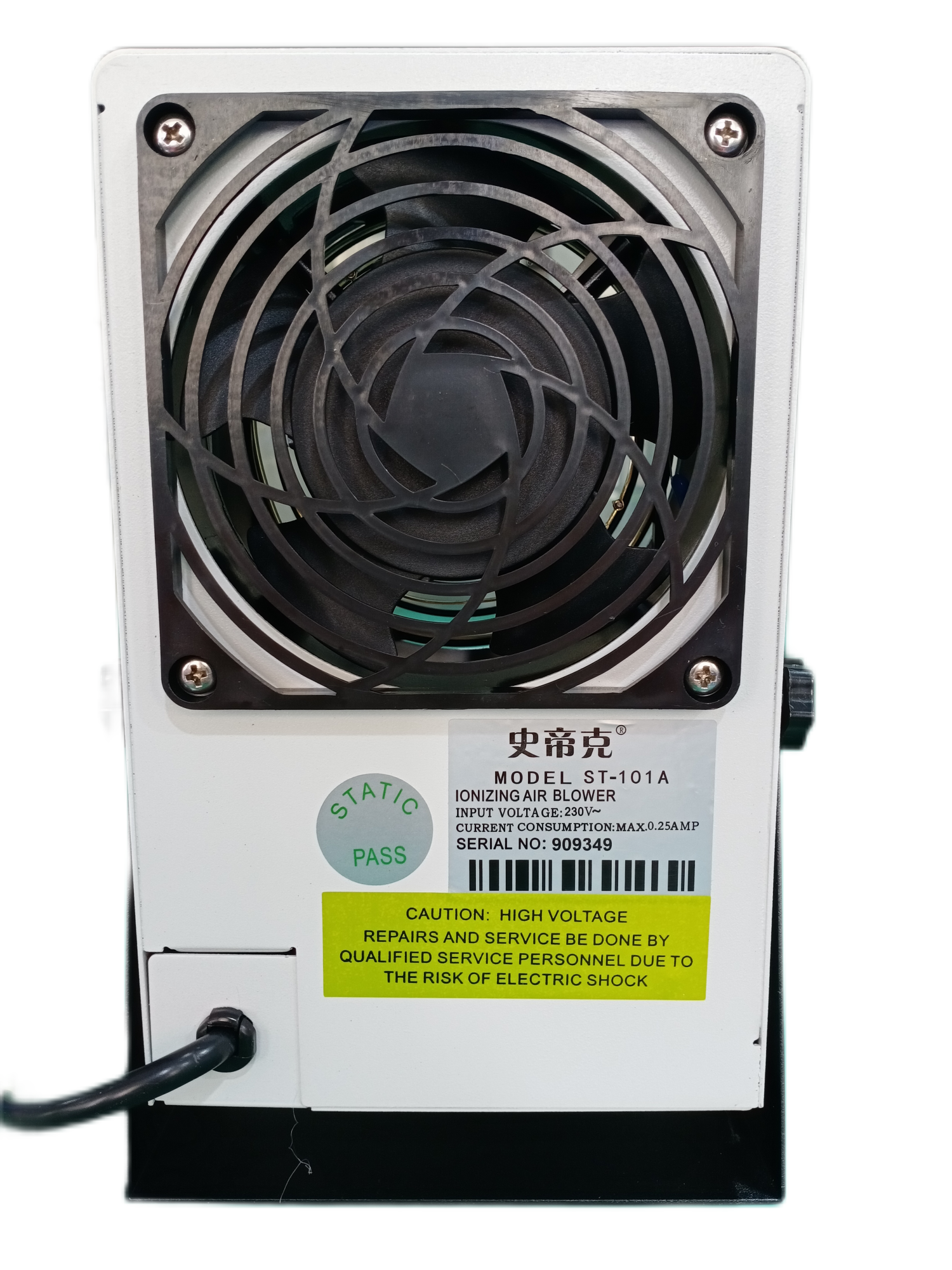

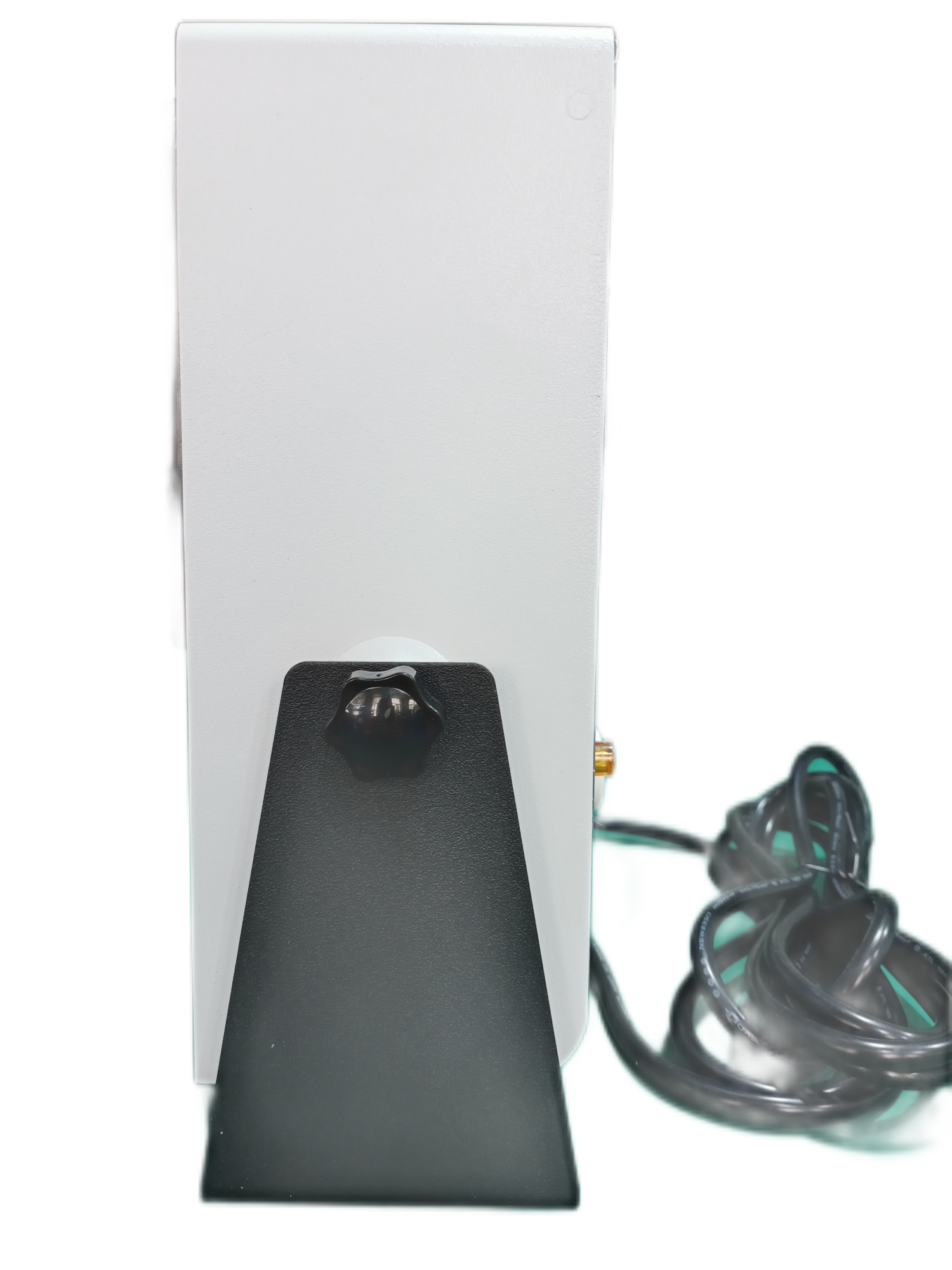

ST104A卧式离子风机
ST101A台式离子风机,其按交流型静电消除器原理设计而成，属电子类。适用于小范围消除静电，方便移动、安装。可调节离子风量，内置高压发生器。
ST101A台式离子风机,其按交流型静电消除器原理设计而成，属电子类。适用于小范围消除静电，方便移动、安装。可调节离子风量，内置高压发生器。 | ||||
技术参数： | ||||
工作电压 | 110V/60HZ 或 220V/50HZ | |||
消耗电流 | 0.25A 或 0.12A | |||
操作温度 | -10～50℃ | |||
外型尺寸 | 90mm(长)×170mm(宽)×260mm(高) | |||
重量 | 3.3Kg | |||
风量 | 45～110CFM | |||
离子平衡 | 0V±10V | |||
气流面积 | 40cm×60cm | |||
测试结果： | ||||
测试条件 | 测试电压：1KV-100V 操作电压：110/220V 环境温度：22℃ 测试湿度：75%RH | |||
距离 |
| 300mm | 600mm | 900mm |
中和时间 | 正 | 1.2s | 2.5s | 3.9s |
负 | 1.3s | 2.6s | 4.1s | |
残余电压 | 正 | 8V | 5V | 4V |
负 | -7V | -6V | -3V | |
ST101A TABLE MODEL IONIZING AIR BLOWER | ||||
STATIC TABLE MODEL IONIZING AIR BLOWERIt is designed as the theory of alternating current electrostatic eliminator, belongs to electrical category.Apply to eliminate electrostatic in a limited distance, convenient to remove and install.The ionizing air volume can be adjusted, including high voltage generator. | ||||
Specification： | ||||
Operating Voltage | 110V/60HZ OR 220V/50HZ | |||
Current Consumption | 0.25A OR 0.12A | |||
Operating Temperature | -10～50℃ | |||
Size | 90mm(L)×170mm(W)×260mm(H) | |||
Weight | 3.3Kg | |||
Air Volume | 45～110CFM | |||
Ion Balance | 0V±10V | |||
Air Coverage | 40cm×60cm | |||
Decay tdst Results： | ||||
Testing Conditions | Test voltage：1KV-100V Operating Voltage：110/220V Temperature：22℃ Test Humidity：75%RH | |||
Distance |
| 300mm | 600mm | 900mm |
Decay time | Positive | 1.2s | 2.5s | 3.9s |
Negative | 1.3s | 2.6s | 4.1s | |
Offset voltage | Positive | 8V | 5V | 4V |
Negative | -7V | -6V | -3V | |
